GI Scaffolding Steel Pipe

Short Description:

GI Scaffolding Steel Pipe 1.Size: Outer diameter: 38mm,42mm,48.3mm-48.6mm Thickness: 1.5-4.75mm Length: 1-16m or customized 2.Material : Q235 , Q345, GRA, GRB, SS400 and STK400/500,S235,S355              ElementsMaterial Chemical Composition% Mechanical Property C% Mn% S% P% Si% Yield Point (Mpa) Tensile Strength(Mpa) Elongation (%) Q195 0.06-0.12 0.25-0.50 <0.050 <0.045 <0.30 >195 315-430 32-33 Q215 0.09-0.15 0.25-0.55 <0.05 <0.045 <0.30 >215 33...


  • FOB Price: US $589 - 789 / ton
  • Min.Order Quantity: 10 tons
  • Supply Ability: 6000 tons/ per Month
  • Port: Xingang,TianJin
  • Payment Terms: L/C,D/A,D/P,T/T
  • Delivery time: According to the order quantity, the delivery time range from five days to twenty days.
  • Product Detail

    Product Tags

    GI Scaffolding Steel Pipe

    1.Size:

    Outer diameter: 38mm,42mm,48.3mm-48.6mm
    Thickness: 1.5-4.75mm
    Length: 1-16m or customized

    2.Material : Q235 , Q345, GRA, GRB, SS400 and STK400/500,S235,S355



               ElementsMaterial Chemical Composition% Mechanical Property
    C% Mn% S% P% Si% Yield Point (Mpa) Tensile Strength(Mpa) Elongation
    (%)
    Q195 0.06-0.12 0.25-0.50 <0.050 <0.045 <0.30 >195 315-430 32-33
    Q215 0.09-0.15 0.25-0.55 <0.05 <0.045 <0.30 >215 335-450 26-31
    Q235 0.12-0.20 0.30-0.70 <0.045 <0.045 <0.30 >235 375-500 24-26
    Q345 <0.20 1.0-1.6 <0.040 <0.040 <0.55 >345 470-630 21-22

    3.Standard : GB/T13793-2008 / BS1139/EN39
    4.Package for GI Scaffolding Steel Pipe :

    4.1.In bundles    4.2.Oiled and waterproof packaging in outside  4.3.According to your requirements

     bs1139 galvanized scaffold tube with thickness 4.0mm

    5.Delivery lead time of GI Scaffolding Steel Pipe: 7-15 days after your deposit or relevant L/C at sight
    6.Surface:   hot-dip galvanized, black, anti-rust oil, coated, electro galvanized
    7.Application:   scaffolding systems

    bs1139 galvanized scaffold tube with thickness 4.0mm



    Other size of Hot Dipped Galvanized Steel Pipe

    Specifications

    OD:6-508mm
    WT:0.4-25mm
    Material quality:

    Q195 → Grade A, SS330,SPHC, S185

    Q215 → Grade B,CS Type B,SS330, SPHC

    Q235 → Grade B,SS400,S235JR,S235JO,S235J2

    Q345 → SS500,ST52
    Prime quality



    BS 1139 Galvanized Scaffolding Steel Pipe Hot sale in UK Market

     bs1139 galvanized scaffold tube with thickness 4.0mm

    1) Outer Diameter : 6-508mm

    2) Wall thickness :0.4-25mm

    3) Length : Max. 16 meters

    4) Standard :GB, ANSI,ASME,ASTM, JIS,DIN,BS,EN

    5) Steel Grade :

    Q195 → Grade A, SS330,SPHC, S185

    Q215 → Grade B,CS Type B,SS330, SPHC

    Q235 → Grade B,SS400,S235JR,S235JO,S235J2

    Q345 → SS500,ST52

    6) Packaging : Plastic Cap, In bundle.

    7) Zinc coating :40-600g Per M 2

    8)Applicationspetroleum, power,gas metallurgy, papermaking, chemical, medical equipment, aviation, boiler heat, exchanger,

    shipbuilding, construction, etc.



    O.D

    O.D tolerance

    W.T

    Thickness Tolerance

    6-508MM

    ±0.03

    0.4-25MM

    ±0.02

    Length

    1-16M , according to customers’ requirements

    Zinc coating

    40–600g/m2

    International Standard

    ISO 9001;2000

    Standard

    GB, ANSI,ASME,ASTM, JIS,DIN,BS,EN

    Material

    Q195 → Grade A, SS330,SPHC, S185Q215 → Grade B,CS Type B,SS330, SPHCQ235 → Grade B,SS400,S235JR,S235JO,S235J2Q345 → SS500,ST52

    Product  Category :

    Metallurgy, Mineral & Energy

    Technique:

    Welded, cold drawn, hot rolled, cold rolled

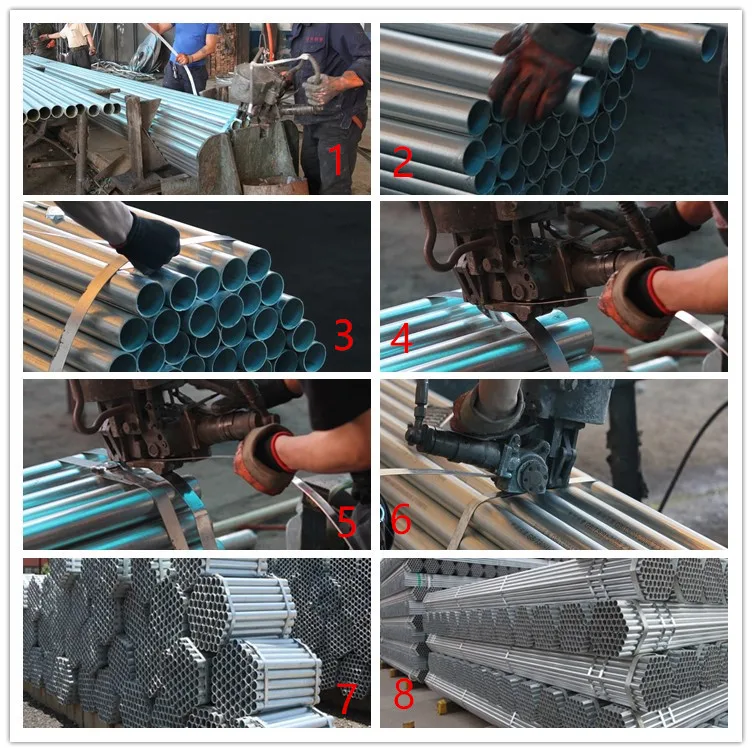

    Packing

    hexagonal water proof packing, packed by steel bands each bundle, with PVC caps, with two nylon slings for lifting

    Usage

    1.For low pressure liquid delivery such as water , gas and oil

    2.For construction , e.g building greenhouse

    Main market:

    Middle east, Africa, North and South America, East and West Europe, South and southeast Asia,Australia

    Place of Origin

    China

    HS code:

    7306309000

    Productivity

    6000 Ton per Month

    Processing technology available:

    Threading , coupling and with plastic caps protected

    Remarks

    1) Payment term :T/T

    2) Trade Terms :  FOB / CFR /CIF

    3) Minimum quantity of order :  10 MT (10,000KGS)

    4) Delivery period :  7 to 20Days .

    Size of  part of galvanized steel pipes



    Outer Diameter

    Wall Thickness

    Length

    Inch

    mm

    mm

    meter

    1/2″

    21.3mm

    0.6mm-3.0mm

    0.3m-12m

    3/4″

    26.9mm

    0.6mm-3.0mm

    0.3m-12m

    1″

    33.4mm

    1.0mm-3.0mm

    0.3m-12m

    1-1/4″

    42.3mm

    1.0mm-4.0mm

    0.3m-12m

    1-1/2″

    48.3mm

    1.0mm-5.0mm

    0.3m-12m

    2″

    60.3mm

    1.5mm-5.0mm

    0.3m-12m

    2-1/2″

    76.1mm

    1.5mm-5.0mm

    0.3m-12m

    3″

    88.9mm

    1.5mm-9.5mm

    0.3m-12m

    4″

    114.3mm

    2.0mm-9.5mm

    0.3m-12m

    5″

    141.3mm

    3.0mm-9.5mm

    0.3m-12m

    6″

    168.3mm

    3.0mm-12.0mm

    1.0m-12m

    8″

    219.1mm

    3.2mm-12.0mm

    1.0m-12m

    10″

    273mm

    3.2mm-12.0mm

    1.0m-12m

    12″

    323.8mm

    6.0mm-15.0mm

    1.0m-12m

    14″

    355.6mm

    8.0mm-15.0mm

    1.0m-12m

    16″

    406.4mm

    8.0mm-20.0mm

    1.0m-12m



    we can do :

    pre-galvanized square pipes ( 10*10mm — 200*200mm )

    pre-galvanized rectangular pipes  (10*20mm — 200*400mm ) Special sizes and grade can be accepted .



    bs1139 galvanized scaffold tube with thickness 4.0mm



    Pls feel free to contact us if you need any steel products



    Contact details:

    Jennie Ying(Ms)-Manager

    **************************************************************************

    TIANJIN ANXINTONGDA STEEL PIPE GROUP CO.,LTD

    Factory Add :Daqiuzhuang Industry Park,Jinghai,Tianjin,China

    Office Add:R804/805,F 8,Building B,HI-TECH Information Plaza,No.8 Huatian Road,Nankai District,Tianjin City,China

    Email:ara@tjaier.com Tel:0086-22-68622106  Fax:0086-22-83745870

    Skype:juneshining     Whatsapp/Wechat:+8618722321843

    Website:www.axsteelpipe.com
